CyberCogs CC-SEL100 Ignition Gear Selector

ADAPTABLE SOFTWARE PERFORMING ALL GEAR SELECTION FUNCTIONS
Hardware Specifications

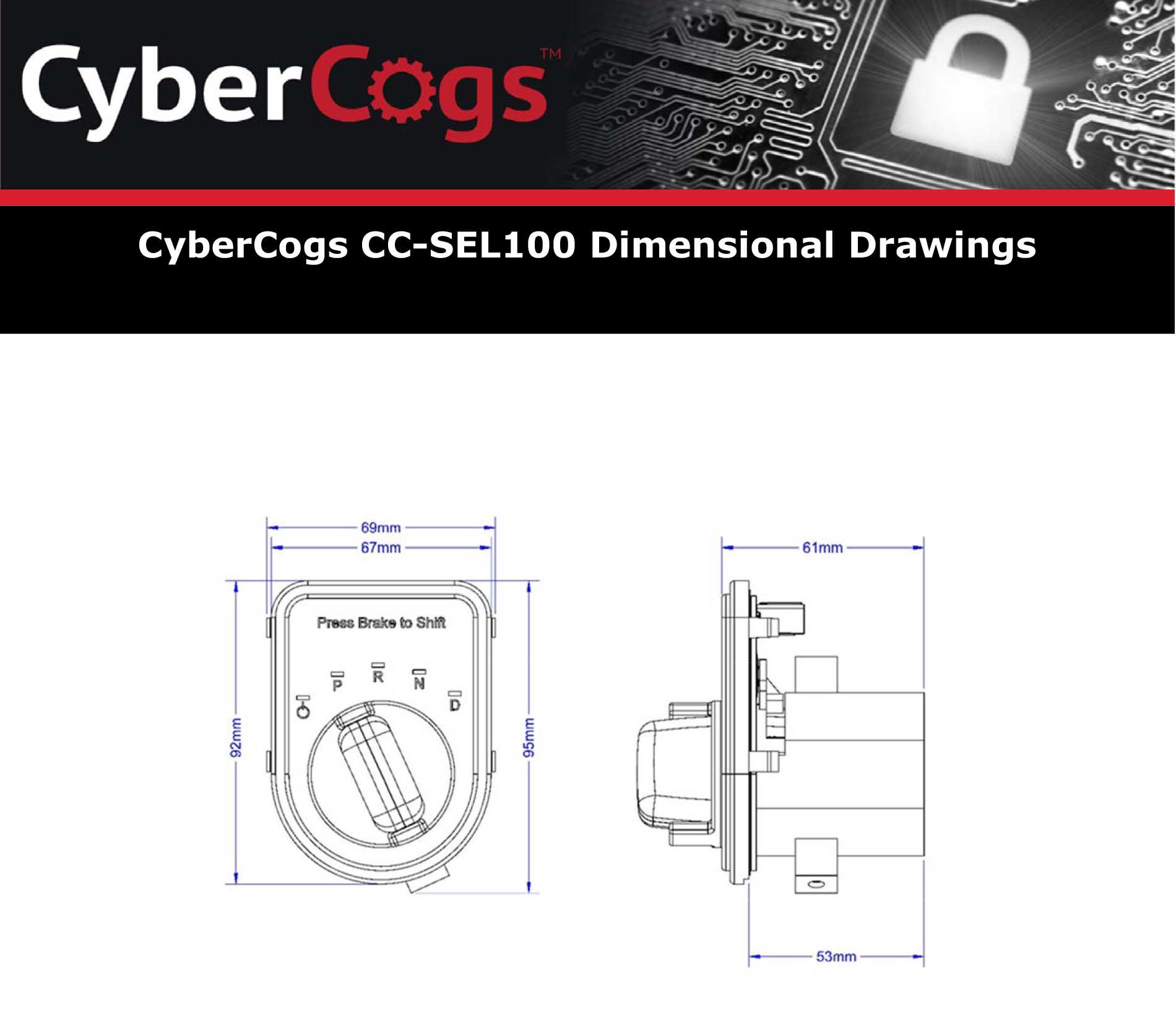

  • Dimensions: 95w x 67d x 61h (mm)
  • Power: 6‐36VDC
  • Communication Ports:
    • 1 LIN Port or 1 CAN FD Port
  • RF communication:
    • Near Field Communication (RFID) ‐ 13.56 Mhz
    • Type 2, Type 4, Type 5 Tags
    • EMVCo 3.0 compliant
    • NFC‐A ISO14443A
    • NFC‐B ISO14443B
    • NFC‐V ISO1563A
  • Data rate: up to 848Kbps
  • Status indicators:
    • LEDs for: Power/Key Present
      • Park
      • Reverse
      • Neutral
      • Drive
      • (For error codes)
  • LED Backlighting: external Backlight control
  • Processor: Cortex M0 running at 48Mhz
  • Memory:
    • 17 Kbytes RAM
    • 128Kbytes of FLASH
Hardware Specifications
  • Package: Material ABC/ PC BLEND 20% GLASS FILL
  • Mounting: Snap‐ fit to dashboard or console
  • Connector : Molex, Mini50 Unsealed Vertical Header, SingleRow, 4 Circuit, Polarization Option C, P/N 347928042
  • Temperature range: ‐40 to 95C
NFC Tag Hardware Specifications
  • Dimensions: 35w x 64d x 16h (mm) including RKE circuitry
  • RF Transceiver Frequencies:
    • NFC Type 4 Tag 13.56 Mhz
    • NFC‐A ISO14443A
  • Memory:
    • 64 Byte EEPROM
    • Support NDEF structure
    • 7 byte unique identifier (UID)
    • 128bit password protection
  • Power: Passive, powered by reader
  • Data rate: up to 106Kbps
  • Temperature range: ‐40 to 60C
Active FOB Hardware Specifications
  • Power: CR2032 Coin battery
  • Battery life: 4+ years
  • RF receive Frequencies:
    • 433Mhz (425Mhz to 480Mhz)
    • 315Mhz (287Mhz to 320Mhz)
  • RF receive Modulation: ASK, OOK, FSK
  • Data rate: up to 200Kbps
  • Processor: Cortex M0 running at 48Mhz
  • Memory:
    • 12 Kbytes RAM
    • 16Kbytes of FLASH
  • Package: ABS plastic UL 94V0
  • Buttons: 3 buttons (with option for more)
    • Lock
    • Unlock
    • Aux (Alarm, customizable)
Additional Features
  • ISO26262 , ASIL‐C compliant
  • FMVSS 102 compliant when combined with VCU
  • Low Power mode with inductive/capacitive FOB detection
  • Integrated (RFID)NFC antenna
  • USA designed and manufactured
  • Integrated Security
  • Secure boot
  • Secure internal key storage for signing, verification, and encryption in secure module subcomponent
Software Features
  • Adaptable Software with modular design for easy integration, performing all Gear selection functions
  • ISS FlexHSM pre‐ported through partnership with ISS
  • ISS FlexUpdate pre‐ported through partnership with ISS
  • ISS DLM Trust for provisioning through partnership with ISS
  • Secure communication available through DLM Trust (available through partnership with ISS)
  • Software developed to Autosar coding guidelines
